Linear Guide Bearing AGH..SA(CA) AGW..SA(CA) Series
  • Linear Guide Bearing AGH..SA(CA) AGW..SA(CA) Series

Linear Guide Bearing AGH..SA(CA) AGW..SA(CA) Series

    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Delivery Time: 30 Days

Basic Info

Model No.: AGH..SA(CA) AGW..SA(CA) Series

Product Description

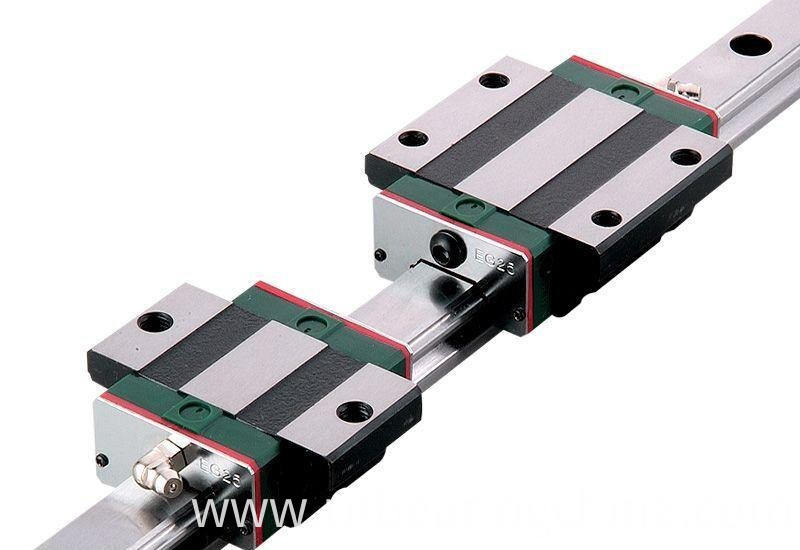

A Linear system consisting of a steel linear rails with induction hardened raceways and high precision radial Ball Bearing sliders, also made of hardened steel. Linear Guide Bearing AGH..SA(CA) AGW..SA(CA) Series are affordable and easy to install on all types of surfaces, including non-machined surfaces.
Guide Bearing AGH..SA(CA) AGW..SA(CA) SeriesLinear Guide Bearing AGH..SA(CA) AGW..SA(CA) Series
Three Guide Bearing AGH..SA(CA) AGW..SA(CA) Series, T, K and U profiles, allow for compensation of inherent misalignment, e.g. machine tool housing
Internal raceways ensure compact dimensions
Two slider types: N-series with aluminum die-cast bodies and C-series with steel bodies

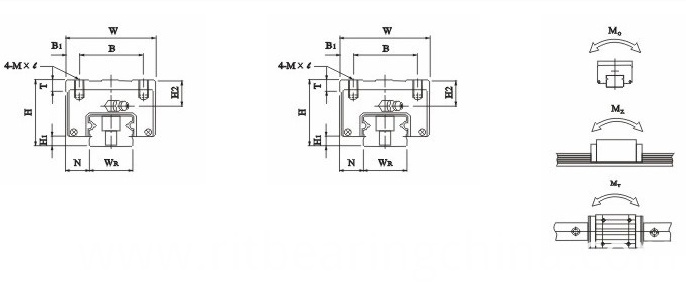

Type Size of the components (mm) Size of the blocks (mm) Weight
H H1 N W B B1 C Blocks (kg) Slide shaft (kg/m)
AGH 15SA 24 5 9.5 34 26 4 - 0.12 1.43
AGH 15CA - - - - - - 26 0.17 -
AGH 20SA 28 6 11 42 32 5 - 0.2 2.16
AGH 20CA - - - - - - 32 0.29 -
AGH 25SA 33 7 12.5 48 35 6.5 - 0.34 2.95
AGH 25CA - - - - - - 35 0.51 -
AGH 30SA 42 10 16 60 40 10 - 0.57 4.76
AGH 30CA - - - - - - 40 0.88 -
AGW 15SA 24 5 18.5 52 41 5.5 - 0.15 1.43
AGW 15CA - - - - - - 26 0.23 -
AGW 20SA 28 6 19.5 59 49 5 - 0.34 2.16
AGW 20CA - - - - - - 32 0.36 -
AGW 25SA 33 7 25 73 60 6.5 - 0.44 2.95
AGW 25CA - - - - - - 35 0.68 -
AGW 30SA 42 10 31 90 72 9 - 0.72 4.76
AGW 30CA - - - - - - 40 1.16 -

Lubricated-for-life Roller Bearings
Resistant to dirt and other common debris
Suitable for applications with speeds up to 9 m/s
Rail width sizes: 18mm, 28mm, 35mm, 43mm and 63mm

Adjustable preload
The raceways are located inside a C profile, protected from dirt. The linear rail with shaped raceways (T), the linear rail with flat raceways (U) and the linear rail with mixed shaped raceways (K) may be combined differently for all applications where parallelism errors on one or both planes must be compensated.

Main fields of application for Compact Rail Linear Bearings AGH..SA(CA) AGW..SA(CA) Serie:
Aerospace
Railway
Medical
Industrial machinery
Packaging
Automation
Logistics

Looking for ideal Linear Guide Bearing AGH/AGW..SA/CA Series Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Linear Bearings AGH/AGW..S/CA Series are quality guaranteed. We are China Origin Factory of Guide Bearing AGH/AGW..SA/CA Series. If you have any question, please feel free to contact us.
